Clypso Floor System

The Warmup Clypso System is designed for use within floating screeded floors. Typically, it does not affect the depth of a floor’s construction.
warmup clypso water underfloor heating system

Clypso Floor System

warmup clypso water underfloor heating system
The Warmup Clypso System is designed for use within floating screeded floors. Typically, it does not affect the depth of a floor’s construction.
Hydronic icon
Floor Type
icon-checkmark Ceramic, Stone, Wood / Laminate, Vinyl, Carpet
Room Type

icon-checkmark  Small & Large Areas

icon-checkmark  Regular Shape

Build Type
icon-checkmark  New Build
Subfloor Type
icon-checkmark  Screed & Concrete Floors

Water System for Floating Screeded Floors

The Clypso system is one of Warmup’s most popular hydronic systems that comprises of heating pipes, connection clips and unique laminated insulation panels. It is recommended for off-plan projects featuring floating screeded floors. It can be installed with almost any floor finish and in particular where the flooring may be replaced from time to time.

Clypso Solution

The Clypso system uses plastic clips to secure the underfloor heating pipe to laminated insulation panels. The panels are available in a variety of depths, from 25mm to 100mm and are constructed from either PIR (polyisocyanurate) or expanded polystyrene insulation with a fabric reinforced foil laminated to their surface.

The foil on each panel comes with two flaps, for taping to the adjoining panel, thereby increasing water resistance and separating the insulation layer from the wet screed. The laminated foil is also printed with a 50mm grid pattern to make consistent pipe-spacing easier for the installer, especially when required to work around obstacles. This makes installation of the Clypso system fast and efficient.

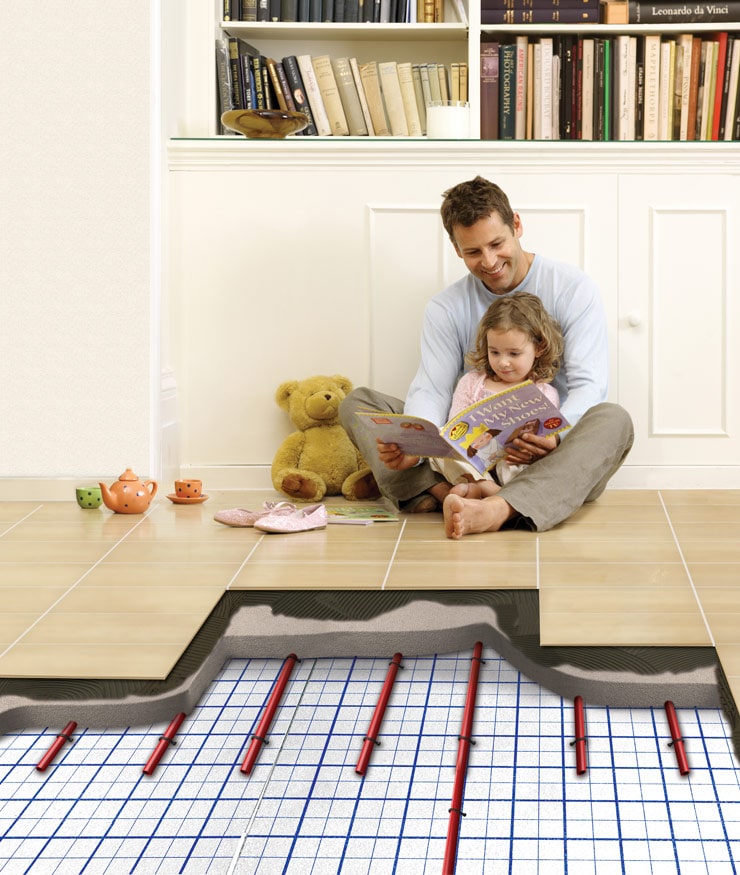

clypso water underfloor system under floorboards in living room

Water System for Floating Screeded Floors

The Clypso system is one of Warmup’s most popular hydronic systems that comprises of heating pipes, connection clips and unique laminated insulation panels. It is recommended for off-plan projects featuring floating screeded floors. It can be installed with almost any floor finish and in particular where the flooring may be replaced from time to time.

clypso system pipes under laminate floor in living room

Clypso Solution

The Clypso system uses plastic clips to secure the underfloor heating pipe to laminated insulation panels. The panels are available in a variety of depths, from 25mm to 100mm and are constructed from either PIR (polyisocyanurate) or expanded polystyrene insulation with a fabric reinforced foil laminated to their surface.

clypso water underfloor heating system

The foil on each panel comes with two flaps, for taping to the adjoining panel, thereby increasing water resistance and separating the insulation layer from the wet screed. The laminated foil is also printed with a 50mm grid pattern to make consistent pipe-spacing easier for the installer, especially when required to work around obstacles. This makes installation of the Clypso system fast and efficient.

Key Benefits

N

The laminate is lined in 50mm grids

To assist the installer in quickly placing the pipes in the correct design format and helps speed-up the installation process
N

Laminate is woven to deliver extra security

Laminate is woven to deliver extra security for retention of the pipe. This also makes it easier to install and provides additional protection against damage to the pipe prior to screed being laid
N

Compressive strength 160 Kpa

The compressive strength is 160 Kpa, which safely allows the floor build-up to take imposed loads without damaging the integrity of the floor

Extensive Warranties

The system can be used with either the PEX-a heating pipe, which comes with a Lifetime Warranty or the PE-RT or AL/PE-RT pipes which come with a 50 year Warranty.

Guarantee and Warranty

safetynet logo

Safety Net Installation Guarantee

If you accidentally damage the underfloor heating pipe during installation, return it to Warmup and we will replace it with the same size and make of pipe for free.

30 years warmup warranty

Lifetime Limited Warranty

The length of the warranty period depends on the type of pipe you choose. When you install this system with the Warmup PEX-a pipe, the pipe comes with a Limited Lifetime Warranty.
