The Warmup Total-16 Low Profile System is perfect for renovation projects and off-plan installations of Underfloor Heating, adding only 16mm to the floor build up.
total-16 water low-profile system

Total-16

total-16 water low-profile system
The Warmup Total-16 Low Profile System is perfect for renovation projects and off-plan installations of Underfloor Heating, adding only 16mm to the floor build up.
Hydronic icon
Floor Type
icon-checkmark Ceramic, Stone, Wood / Laminate, Vinyl, Carpet
Room Type

icon-checkmark  Small & Large Areas

icon-checkmark  Regular Shape

Build Type

icon-checkmark  New Build

icon-checkmark Refurb

Subfloor Type
icon-checkmark  Floating Floors

Water System for All Projects

The Total-16 System is a lightweight, heavy-duty floor heating system that requires no screed and due to its thin depth of only 16mm is recommended for renovations where ceiling heights are fixed.

It is designed to be used with Warmup’s 12mm PEX-A pipe, which is inserted into the insulation boards with integrated aluminium heat diffuser plates for greater radiant heat conductivity. The PEX-A pipe is at the heart of our system due to its strong, flexible and kink-resistant nature and also comes with our best warranties and guarantees.

total-16 water underfloor heating cutaway

Water System for All Projects

The Total-16 System is a lightweight, heavy-duty floor heating system that requires no screed and due to its thin depth of only 16mm is recommended for renovations where ceiling heights are fixed.

total-16 water underfloor heating cutaway

It is designed to be used with Warmup’s 12mm PEX-A pipe, which is inserted into the insulation boards with integrated aluminium heat diffuser plates for greater radiant heat conductivity. The PEX-A pipe is at the heart of our system due to its strong, flexible and kink-resistant nature and also comes with our best warranties and guarantees.

Key Benefits

N

Total height – 16mm

Minimal impact on floor levels – ideal for retrofitting and for installations on upper floors.
N

Made using EPS and Aluminium spreader plates

Combination of insulation and spreader plates cuts heat-up times.
N

Output up to 111W/m²

Can be used for sole-source heating.
N

Ultra low-weight boards

Easy to fit and handle for rapid installation.
N

Modular design

Fits rooms of almost any size and shape.
N

Suitable for most floor finishes, including tiles

Low-profile Underfloor heating

Total-16 is ideal for new-build and refurbishment projects where floor height is at a premium and installation speed is of the essence.

Warmup’s Total-16 system is installed onto either concrete or wooden subfloors and can be used under almost any floor finish, including: solid and engineered wood, ceramic or stone floors as well as vinyl and carpet.

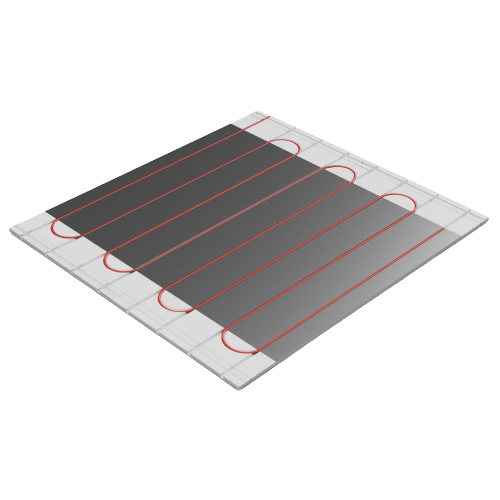

The Total-16 system is comprised of insulated straight boards, with integrated aluminium plates, multi-feed boards and return boards. These boards are made of a high density EPS and can support 40 tonnes/m².

Low-profile Underfloor heating

Total-16 is ideal for new-build and refurbishment projects where floor height is at a premium and installation speed is of the essence.

Warmup’s Total-16 system is installed onto either concrete or wooden subfloors and can be used under almost any floor finish, including: solid and engineered wood, ceramic or stone floors as well as vinyl and carpet.

The Total-16 system is comprised of insulated straight boards, with integrated aluminium plates, multi-feed boards and return boards. These boards are made of a high density EPS and can support 40 tonnes/m².

Guarantee and Warranty

Safety Net Installation Guarantee

If you accidentally damage the underfloor heating pipe during installation, return it to Warmup and we will replace it with the same size and make of pipe for free.

Lifetime Limited Warranty

The length of the warranty period depends on the type of pipe you choose. When you install this system with the Warmup PEX-a pipe, the pipe comes with a Limited Lifetime Warranty.

Installing this product? You will also need:

Pipes

warmup underfloor pipes

Warmup systems come with a choice of 3 pipe types; PEX-A, PE-RT and PE-RT/AL/PE-RT. This choice guarantees that you have the best possible system, tailored to your specific installation and budget.

View Pipes

Manifold

warmup manifold

The Warmup Manifold is manufactured from stainless steel and provides water regulation for up to 12 underfloor heating circuits.

View Manifold

Control Center

control center for hydronic systems

All hydronic systems require a control centre that works with the thermostats and the heat source, such as a boiler.

View Control Center

Thermostat

thermostat page

Choosing the correct control system is crucial in ensuring that your heating system works in the best possible way, efficiently and easily.

View Thermostats
