Tectora Joisted Floor System

The Warmup Tectora System is designed for use within either battened or suspended timber floors, including TJI joist constructions.
warmup tectora hydronic system

Tectora Joisted Floor System

warmup tectora hydronic system
The Warmup Tectora System is designed for use within either battened or suspended timber floors, including TJI joist constructions.
Hydronic icon
Floor Type
icon-checkmark Ceramic, Stone, Wood / Laminate, Vinyl, Carpet
Room Type

icon-checkmark  Small & Large Areas

icon-checkmark  Regular & Irregular Shapes

Build Type

icon-checkmark  New Build

icon-checkmark  Refurb

Subfloor Type
icon-checkmark  Timber Suspended & Batten Floors

For Use with Cradled Floors

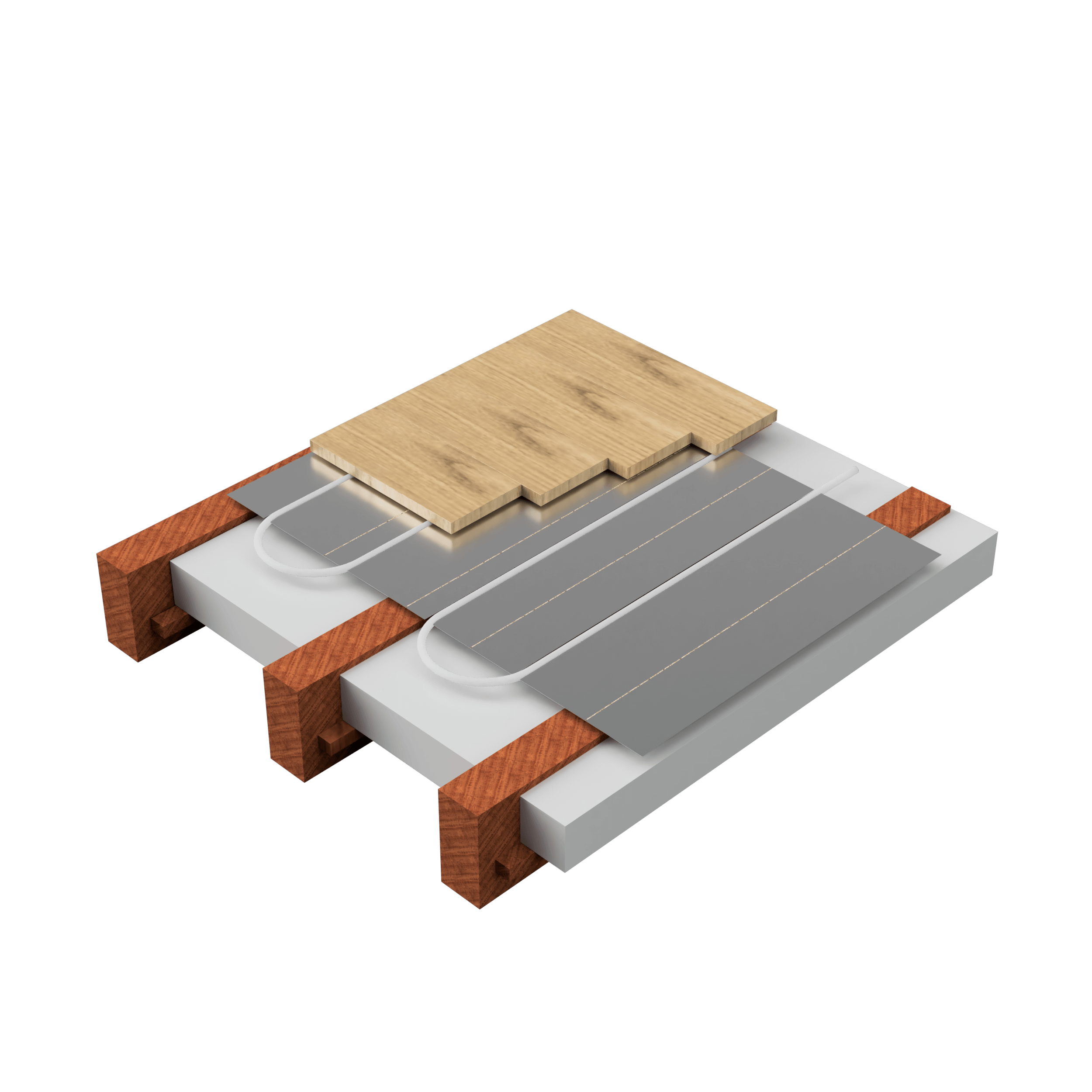

The Tectora Joisted Batten Floor System is particularly suitable where there is a sprung/cradled battened floor or floor joists. The system features insulation installed between floor joists with the heating pipes inserted within diffusion plates fitted above for optimal heat distribution. It is a dry-fitted hydronic system, requiring no screeding.

warmup tectora hydronic cutaway

Compatible with All Floor Finishes

The Tectora Joisted Batten Floor System is suitable for almost any floor finish, in particular wood or engineered wood but for installation under tiles as a final floor finish, additional layers of plywood or tile backer board may be required to create a rigid base. The system is suitable for use with all Warmup 16mm heating pipes.

warmup tectora hydronic cutaway

Key Benefits

N

Diffusion plates spread heat efficiently

Without increasing floor build-up.
N

System promotes fast heat-up response times

Holds the pipe at the correct level prior to screeding to ensure there are no hot spots.
N

No screeding required

Holds the pipe at the correct level prior to screeding to ensure there are no hot spots.
tectora hydronic system diffusion plates

Diffusion Plates for Even Heat

The system is used in battened installations over a concrete subfloor; variable height floor battens are employed to create a void of between 50 to 100mm. The batons can be sprung or on cradles to create an acoustic floor.

tectora hydronic system diffusion plates

Installation

For this installation, a diffusion plate system is generally used if standard installation types are not suitable. For installing as a joisted system, the rigid insulation is placed between the joists to support the diffusion plates, as they span the joists.

Guarantee and Warranty

Safety Net Installation Guarantee

If you accidentally damage the underfloor heating pipe during installation, return it to Warmup and we will replace it with the same size and make of pipe for free.

Lifetime Limited Warranty

The length of the warranty period depends on the type of pipe you choose. When you install this system with the Warmup PEX-a pipe, the pipe comes with a Limited Lifetime Warranty.
