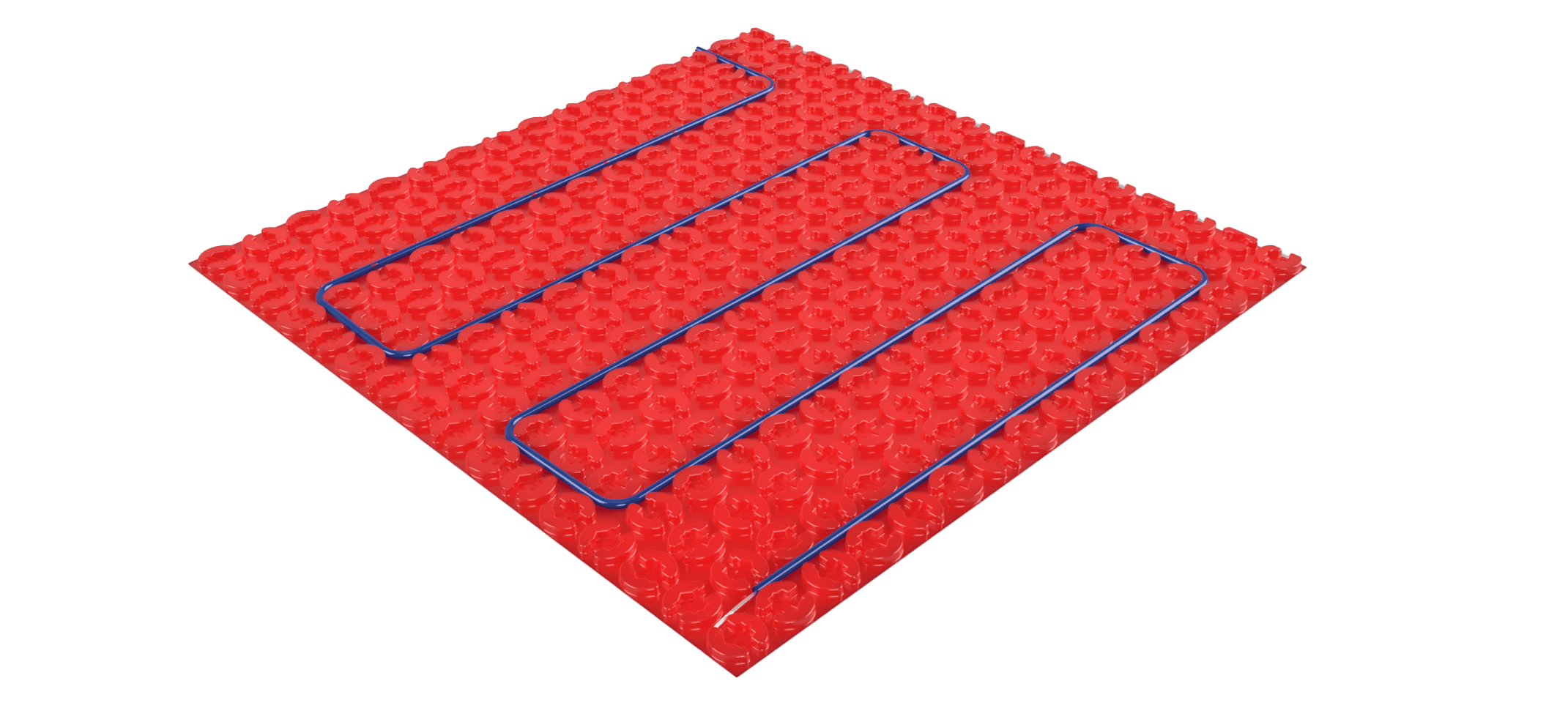

DCM-PRO System
DCM-PRO uses unique decoupling technology to protect tiled floors. It offers a customisable UFH solution, with two membrane options to select from – Peel-and-Stick or Fleece-Backed – and a choice of heating cables for standard and low-wattage projects,
Guide Price
from £66.80 /m² ex. VAT
(Based on a 10m² purchase)
Key Benefits
Easy Installation
The Peel-and-Stick membrane features a self-adhesive underside that attaches directly to the subfloor and eliminates the need for an adhesive layer, significantly reducing installation time. The Fleece-Backed membrane is ideal for use with traditional adhesives.
Flexible heat output
With a choice of two heating cables, you can specify the system for standard wattage projects of between 112.5 W/m² - 225 W/m² and low wattage projects of between 41.3 W/m² - 82.5 W/m² and facilitate a wide spread of power to suit your project’s requirements.
Protects floors
The innovative decoupling membrane absorbs lateral subfloor movements, helping to prevent these stresses reaching the tiled floor finish and causing it to crack.
Innovative System that Protects your Floor
The DCM-PRO Heated Decoupling System is a technologically advanced electric underfloor heating system from Warmup that is proven to protect tiled floors from cracking, as tested by ANSI 118.12:5.4 (American National Standards Institute).
Decoupling Membrane
DCM-PRO’s decoupling membrane is available with a self-adhesive or fleece backing – making installation adaptable and hassle-free.
Anti-Fracture Protection
The system suits all floor types but has been specifically developed to help protect stone and tiled floor finishes from damage caused by seasonal temperature changes that can affect the sub-floor. Tiles that are particularly prone to cracking benefit a lot from the anti-fracture membrane of DCM-PRO; hence why this UFH system is always recommended with floor tiles.
How Does the Decoupling System Work?
The decoupling layer of the DCM-PRO membrane contracts and expands to deal with lateral movements in subfloors, preventing damage from occurring to tiled floor coverings.
The self-adhesive layer or fleece backing stretches with expansion.
Decoupling layer contracts if gap shrinks due to seasonal changes.
Protects floor surface from damage caused by lateral subfloor movement.
Two Heating Cable Options – Standard and Low Wattage
The DCM-PRO System facilitates a flexible heat output through the choice of two heating cables and its ability to allow for a personalised heated area layout.
112.5 W/m² to 225 W/m² Output for Standard Wattage Projects
You can use the system for standard wattage projects by purchasing the DCM-PRO with the Blue Cable, which offers an output of between 112.5 -225W/m² based on your project’s requirements.
41.3 W/m² - 82.5W/m² Output for Homes with Low Load Supplies
The DCM-PRO Low Wattage System features a flexible output of 41.3 – 82.5W/m², making it ideal for use in homes with low load supplies and low levels of heat loss. A low wattage electric system can also allow solar arrays with battery storage to supply 100% of the load more often – giving your home the potential to be heated entirely by zero carbon, on-site produced electricity.
The low wattage DCM-PRO is rated for increased floor finish resistances of up to 3.0 tog and allows you to tailor the system to your power requirements.
Two Decoupling Membrane Options – Peel-and-Stick or Fleece-Backed
DCM-PRO is available with two membrane options for a more bespoke UFH installation: the Peel-and-Stick membrane offers 40% faster installation times than standard floor heating membranes whilst the fleece-backed membrane has been designed to use with traditional adhesives.
With an effective self-adhesive backing, Warmup’s DCM-PRO Peel-and-Stick membrane does not require any tile adhesive for it to be firmly attached to the subfloor. It can be rapidly installed by a qualified electrician or tiler and helps keep floor heights to a minimum.
The DCM-PRO Fleece-backed membrane features a standard fleece backing which can be used with a separate adhesive to create a strong connection between the subfloor and the system. It is particularly suitable for use in spaces featuring damp or uneven subfloors and it allows a flexible installation method whereby you can reposition the membrane as required.
Rapid UFH Installation
With an updated castellation design, DCM-PRO offers a quick and hassle-free installation of Warmup Underfloor Heating. The dimensions of the membrane are designed for convenient sizing so that 2m² of heating cable fits exactly 2m² of membrane. The spacing of the cable can, however, be adjusted to increase or decrease coverage and power. You don’t need any tools to install the system – simply position the heating cable by hand within the castellations of the membrane.
DCM-PRO can be tiled directly onto, or it can be covered with a layer of self-levelling compound if using with any other floor finish that is certified for use with underfloor heating. This system features Warmup’s market-leading warranty for guaranteed performance.
Guarantee & Warranty
Safety Net Installation GuaranteeIf you accidentally damage the heating system during installation, return it to Warmup and we will replace it with another heater of the same make and model free.
Lifetime Limited WarrantyThis product comes with a Lifetime Warranty. We are completely confident in the standard of our products.
Technical Information
Technical Specifications DCM-PRO Cable
| Operating voltage | 220-240V: 50Hz |
| IP Rating | IPX7 |
| Colour | Blue |
| Thickness | 4.5mm (± 0.2mm) |
| Output rating | 150w/m² (3 Castellations – 90mm) |
| Inner Insulation | Advanced Fluoropolymer (ETFE) |
| Min. Insulation Temp | 5°C |
| Connection | 3M Long ‘Coldtail’ Connection |
| Approvals |    |
Technical Specifications DCM-PRO Mat
| Dimensions |
|
| Thickness |
|
| Composition | POLYPROPYLENE MEMBRANE WITH SELF-ADHESIVE OR FLEECE BACKING |
| Colour | Red |
| Spacing | 60mm, 90mm & 120mm |
| Matt | .73m² sheet / 14m² roll |
You will also need
Thermostat
Choosing the correct control system is crucial in ensuring that your heating system works in the best possible way, efficiently and easily.
Insulation Boards
Using Insulation Boards with under floor heating significantly reduces the heat-up times and running costs.
Warmup Primer
Ideal for use before laying Warmup Peel and Stick systems, levelling compounds and tile adhesives.
