Insulation for Water Underfloor Heating
Water or hydronic underfloor heating systems are a popular choice for extensions, new and self-build projects, dwellings or building. The system uses water for heating, so it can be linked to virtually any heat source from a standard boiler to newer sustainable technologies such as solar thermal energy and heat pumps.

Insulation for Water Underfloor Heating

Water or hydronic underfloor heating systems are a popular choice for extensions, new and self-build projects, dwellings or building. The system uses water for heating, so it can be linked to virtually any heat source from a standard boiler to newer sustainable technologies such as solar thermal energy and heat pumps.

Water Insulation Components
Metro Insulation

Available in a range of thicknesses from 25mm to 100mm in both EPS and PIR variants to help your project comply with building regulations
Clypso Insulation

High quality thermal insulation with a conductivity of 0.022 W/mk. Made from a PIR foam, which has zero Ozone depletion potential. The product has a BRE green guide rating of A.

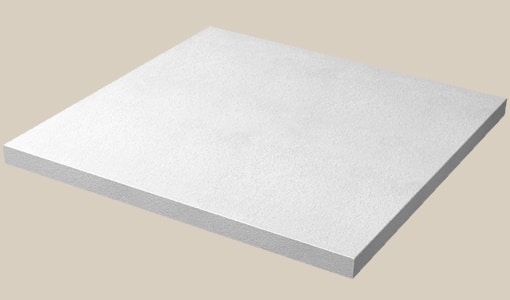

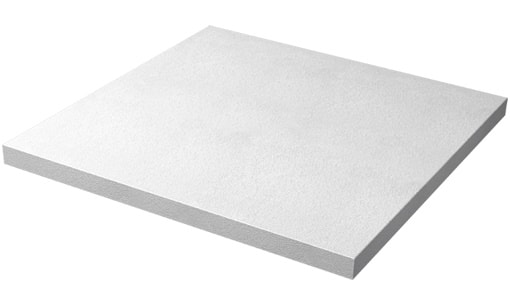

Metro Insulation
Warmup Metro Insulation is available in a range of thicknesses from 25mm to 100mm in both EPS and PIR variants to help your project comply with building regulations

Metro Insulation is made from a PIR (polyisocyanurate) foam which has zero Ozone depletion potential (ODP). Its blowing agents are CFC/HCFC free, which would otherwise potentially damage the atmosphere. The product has a BRE green guide rating of A. The rigid PIR foam core is faced with aluminium foil composite to both sides and the compressive strength when tested to BS EN:826 exceeds 160KPa. The insulation boards are 2.4m x 1.2m and come in a thickness range of 25mm to 100mm.
The Metro Insulation suitable for use with Metro, Nexxa, Forte, Econna and Tectora hydronic systems.
Insulation to comply with Building Regulations
The Metro insulation helps to meet the requirements set out in Building Regulations for insulation
Improved responsiveness
Increases the efficiency of your underfloor heating system by ensuring fast heat-up time
Lower running costs
The insulation has been recognised for its suitability to green building and has zero Ozone depletion potential (ODP)
BRE green guide rating A
The insulation has been recognised for its suitability to green building and has zero Ozone depletion potential (ODP)
Clypso Insulation
Warmup Clypso Insulation is high quality thermal insulation with a conductivity of 0.022 W/mk

It is made from a PIR (polyisocyanurate) foam, which has zero Ozone depletion potential (ODP). Its blowing agents are CFC/HCFC free, which would otherwise potentially damage the atmosphere. The product has a BRE green guide rating of A.
The rigid PIR foam core is faced with a tough gridded woven aluminium facing to both sides, used to retain the pipe in position via the pipe clip.Compressive strength when tested to BS EN: 826 exceeds 160KPa. The insulation boards are 2.4m x 1.2m and come in a thickness range of 25mm to 100mm.
The Clypso Insulation is suitable for the Clypso and the Silva system.
Dual Overlay Concrete
Fast-tracked floor preparation system for use as screed replacement. Comprised of two 6mm-deep cement top and base boards to provide a stable surface for the floor finish and ensure even heat distribution.

Warmup’s Dual Overlay Concrete is a screed replacement board-based system manufactured with high-quality concrete for even heat distribution. Recommended for use with the Econna, Contura and Total-16 Hydronic systems, the low-profile top and base boards are quick to install and protect the underfloor heating system.
The 6mm deep boards come in 1.2m x 0.6m sized lengths and have a thermal Rm value of 0.038 per square metre. Designed for both wet and dry rooms, it is suitable for a variety of floor finishes.
The two layers of boards provide low heat resistance, allowing efficient heating and are bonded together to create a solid subfloor structure with the included contact adhesive.
You may also be interested in:
Pipes

Warmup systems come with a choice of 3 pipe types; PEX-A, PE-RT and PE-RT/AL/PE-RT. This choice guarantees that you have the best possible system, tailored to your specific installation and budget.
Manifold

The Warmup Manifold is manufactured from stainless steel and provides water regulation for up to 12 underfloor heating circuits.
Control Center

All hydronic systems require a control centre that works with the thermostats and the heat source, such as a boiler.
Thermostat

Choosing the correct control system is crucial in ensuring that your heating system works in the best possible way, efficiently and easily.
