Inscreed Cable System

The Inscreed Cable System is designed for use within a screeded floor construction

Guide Price
from £14.58 /m² ex. VAT
(Based on a 10m² purchase)

Key Benefits


Floor covering can be changed

Without damaging the heater, saving money and increasing flexibility.


Optimal Output

Powerful output cable can be laid at different spacings to give optimal output to complement the flooring finish or room design


Works under any floor finish

Inscreed Cable works with any floor covering compatible with underfloor heating.

modern kitchen interior

What Project is Inscreed Cable Designed For?

If you are looking for underfloor heating for concrete floors, the Inscreed Cable System is designed for this purpose. Inscreed Cable heating is especially ideal for installations within concrete floor constructions in new builds where the floor height is not an issue. For retrofit in existing concrete floors where there is less room to alter the floor height, another electric underfloor heating system may be a more suitable option.

The Inscreed Cable electric underfloor heating system is designed for installation in concrete screed thickness of 50mm to 100mm. One of the best screeds to use for this process is from Instarmac’s UltraFloor range. If insulation is absent or beneath more than 100mm of concrete subfloor, insulation boards must be used to ensure optimum heat-up times.

The Inscreed Heater is suitable for almost any flooring finish and in particular where the flooring (wood, carpet, vinyl) may be replaced from time to time.

The slower heat-up and cool-down time of the Inscreed Cable makes it particularly suitable for rooms which are in constant use, as the screed can be used as a form of storage heating; making effective use of cheaper, low-tariff energy usage.

underfloor heating inscreed cable

Suitable Floor Coverings for Inscreed Cable

Almost any floor covering can be considered with Inscreed Cable. Since the heater is safely embedded in cementitious screed there is less of a risk of harming the heating cable if the floor covering will be changed from time to time. The following floor coverings are suitable with Inscreed Cable:


If a tiled floor is being laid on top, flexible tile adhesive and grout must be used with the Inscreed Cable electric underfloor heating system.


With laminate or engineered wooden board floors it is essential that the flooring is no more than 18mm thick to ensure that the heat can transfer through. If you are using a layer of soft insulation beneath the flooring it must be compatible with installation on top of an underfloor heating system.


Concrete provides quick heat-up times and retains heat well, even storing the warmth produced by solar gain, making a heated polished concrete floor a great option to improve the comfort and warmth of your home.

inscreed cable in modern kitchen

Installation of Inscreed Cable Underfloor Heating on concrete floors

Before starting any installation it is important to first read the installation manual. If the concrete base is thicker than 100mm or the subfloor is uninsulated, it is recommended to apply insulation boards and lay the wire directly on this insulation. If the concrete base is less than 100mm thick or insulated, the wire can be laid onto the concrete slab. While the latter option is acceptable, insulation directly below the heating cable will improve the efficiency of the system.

Before you start, make sure the subfloor is of a suitable material as well as suitable for screeding and is rigid and free of dust and debris.

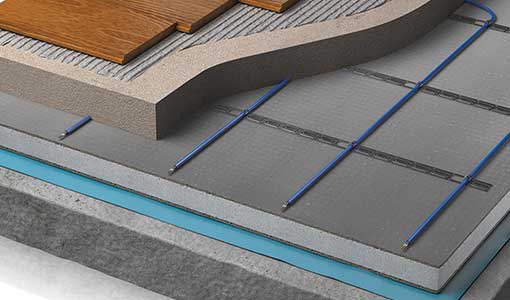

The Inscreed Cable should be laid at least 50mm apart and a minimum of 50mm deep within the screed. To secure the Inscreed cable to the subfloor you will need metal fixing strips. The metal fixing strips are laid out perpendicular to the heating element and fixed to the insulation board or the concrete floor using fixing nails or an adhesive; always ensuring there is no movement of the fixings. The heating cable is then laid up and down the room and clipped into the metal fixing strip. Always space the cable evenly to ensure an even distribution of heat in the floor.

After the cable is in place, the next step is to screed over the heating system by carefully pouring cementitious screed over the fixed in Inscreed Cable to a depth of at least 50mm. Place the floor probe supplied with the thermostat as close to the final floor finish as possible, embedding it in the screed. Finish the installation by wiring the heating cable to a thermostat.

Once the screed or levelling compound is fully dried you can lay the final floor covering.

Guarantee and Warranty


Safety Net Installation Guarantee

If you accidentally damage the heating system during installation, return it to Warmup and we will replace it with another heater of the same make and model free.

Lifetime Limited Warranty

This product comes with a Lifetime Limited Warranty. We are completely confident in the standard of our products.

Technical Information

Product Documentation
Technical Specification
Operating voltage 230V: 50Hz
Output rating 100 to 210W/m²
Cold tail length 2.5 m
Cable Diameter 6mm
Approvals EUFH heating mat approvals  EUFH heating mat approvals  EUFH heating mat approvals
