Lo-16 Water Underfloor Heating System

Exceptional Performance. Exceptional Value. Warmup’s Lo-16 is a robust, low-profile water underfloor heating system that offers great value for money and delivers up to +19% higher heat output than comparable systems on the market.

Key Benefits

Robust floor protection

In-built 500kPa closed cell XPS insulation

High heat output

Continuous 200μm thick aluminium diffuser

Exceptional value

Broader heat coverage with less pipework & lower total system price

Robust Floor Protection for Home Renovations

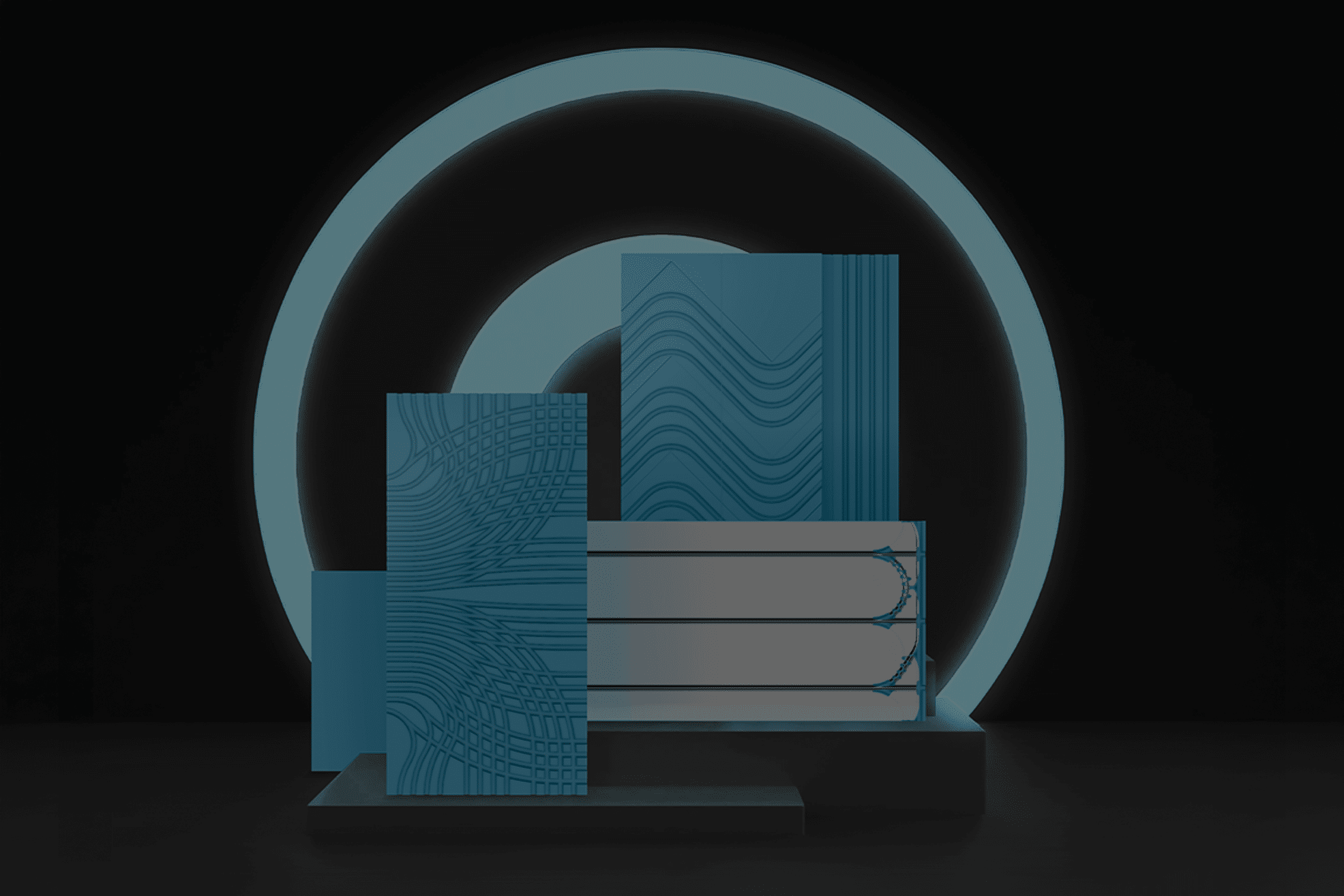

Lo-16 is comprised of a full set of lightweight yet structurally robust panels that incorporate 500kPa closed-cell, moisture-resistant XPS insulation for superior compressive strength compared to less durable EPS alternatives – making this system perfect for use under high load traffic areas whilst protecting floor finishes from stress cracks.

As a panel-based water underfloor heating system, Warmup’s Lo-16 System adds just 25mm to the floor build-up whilst its screedless installation method makes it ideal to fit over existing subfloors in refurbishment projects.

Superior Heat Output, Faster Heat Spread

Lo-16’s precision engineering delivers a consistent heat output at lower water temperatures. Its universal panel features a continuous 200μm aluminium diffuser which is pressed into precision omega-shaped grooves, ensuring full pipe contact to draw heat and maximise thermal transfer – providing a more even heat spread and delivering up to +19% higher heat output than comparable models.

Advanced Engineering: Greater Efficiency, Greater Cost-Savings

Compatible with Warmup’s 16mm PE-RT pipe, the Lo-16 System features 200mm pipe-spacing centres to reduce hydraulic pressure loss and enable larger floor heating circuits with a broader heat coverage, thereby reducing the manifold size and overall system cost. This optimised pipe spacing also enables the heating pipe to be installed without exceeding the minimum bending radius, protecting the warranty unlike competitor panels featuring 150mm centres. Its ancillary panel set includes plain, manifold, service and curved panels, eliminating the need for manual cutting or infilling with levelling compound whilst ensuring a consistent structural performance.

Compatible with both traditional heat sources and heat pumps, Lo-16 offers exceptional value-for-money – delivering superior comfort, low long-term running costs and robust protection for almost all floor finishes in rooms of any size and shape.

Feature	Benefit	Warmup Lo-16 System	Other Brands
Panel Thickness	Stronger, more stable floor	25mm: More robust	20mm: Risk of breakage
Compression Strength	Long-term floor protection	500kPa XPS: Moisture resistant & no bend over time	400kPa EPS: Softer, prone to bend and rot
Diffuser Profile	Better heat performance	200μm continuous aluminium pressed into the grooves: up to +19% higher heat output	200μm sliced aluminium over the grooves: Reduced heat output & cold spots
Pipe Spacing	Efficiency in energy and cost	200mm centres: optimised spacing, broader heat coverage & less pipe needed	150mm centres: Tighter bends complicate 16mm pipe installation and risk warranty issues
Ancillary Panels	Faster, cleaner installation	Full set available: Faster, cheaper installation	Service straight panels only: Longer installation & greater cost
Support	Peace of mind	Full Warmup 24/7 Smartcare support and Lifetime Warranty	Limited support, basic component warranty

Guarantee and Warranty

Safety Net Installation Guarantee

If you accidentally damage the underfloor heating pipe during installation, return it to Warmup and we will replace it with the same size and make of pipe for free.

Lifetime Limited Warranty

The length of the warranty period depends on the type of pipe you choose. When you install this system with the Warmup PE-RT pipe, the pipe comes with a Limited Lifetime Warranty.
