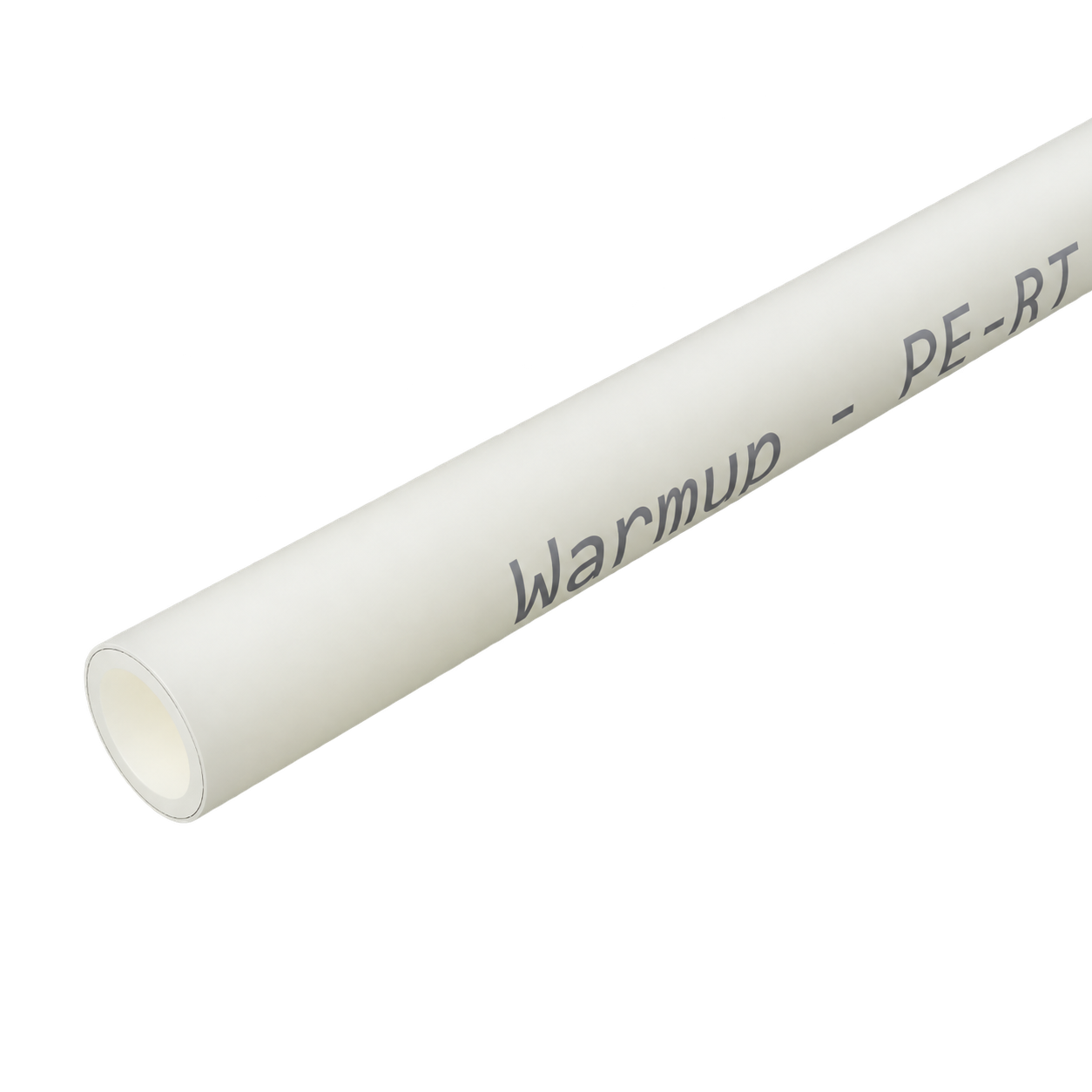

PE-RT Pipe
Warmup PE-RT (Polyethylene of Raised Temperature Resistance) pipe is extremely flexible with excellent long-term stress resistant properties combined with long-term strength at elevated temperatures. Warmup PE-RT is available in both 16mm and 12mm diameters.
Key benefits
Oxygen barrier
The inner layer of PE-RT prevents oxygen entering the system via the pipework.
Easy to lay
APE-RT can hold and maintain its shape, when formed by hand.
Corrosion free
The coatings stop oxygen from entering via the pipework minimising the risk of corrosion to the system.
Cost-Competitive Pipes
The pipe guarantees leak free performance with a smooth internal structure for improved flow, reduced pressure loss and deposit formation. Warmup PE-RT pipe is ideal for underfloor heating systems as well as being suitable for hot and cold water sanitary and distribution systems and various heating systems for domestic, commercial & industrial applications.
Warmup PE-RT pipe incorporates an EVOH oxygen diffusion barrier layer sandwiched within the wall of the pipe, protecting the EVOH layer from physical damage. The EVOH layer which complies with DIN 4726 renders the pipe virtually impervious to oxygen and other gases. PE-RT pipes retain flexibility at freezing temperatures and therefore do not break in sub-zero conditions. Pipes are produced and tested according under an ISO 9001 quality management system to four standards, namely DIN 16833, DIN 4726, ISO 22391 and ISO 10508.
Warranty
Lifetime Warranty
Technical Information
Product Documentation
Technical Specifications Sheet: TS/PE-RT PIPE
Pipe bend supports: Technical Specification Sheet
Pipe conduit: Technical Specification Sheet
Technical Specifications
| 16mm diameter | 12mm diameter | |
| Pipe Range nominal dimensions | 16mm OD x 12mm ID x 2.0mm wall thickness | 12mm OD x 8mm ID x 2.0mm wall thickness |
| Colour | White | White |
| Coil sizes | 25m, 50-120m (10m increments) | 50, 60, 70m |
| Operating Temperature Peak | 80°C | 80°C |
| Maximum Operating pressure | 10.7 bar at 70°C | 10.7 bar at 70°C |
| Construction 5 layer: | PE-RT – adhesive – EVOH – adhesive – PE-RT | PE-RT – adhesive – EVOH – adhesive – PE-RT |
| Manufacturing | EN ISO 21003 (application class 4) | EN ISO 21003 (application class 4) |
| Quality Assurance | ISO 9001 | ISO 9001 |
Mechanical Properties
| Composition | Inner pipe PE-RT |
| Pipe roughness | 0.007 mm/m |
| Bending radius | 5 x outside diameter minimum |
| Water capacity | 16mm – 0.113 l/m |
Thermal Properties
| Thermal conductivity | 0.45 W/m K |
| Thermal expansion coefficient | 0.026 mm/m K |
