PEX-A Pipe

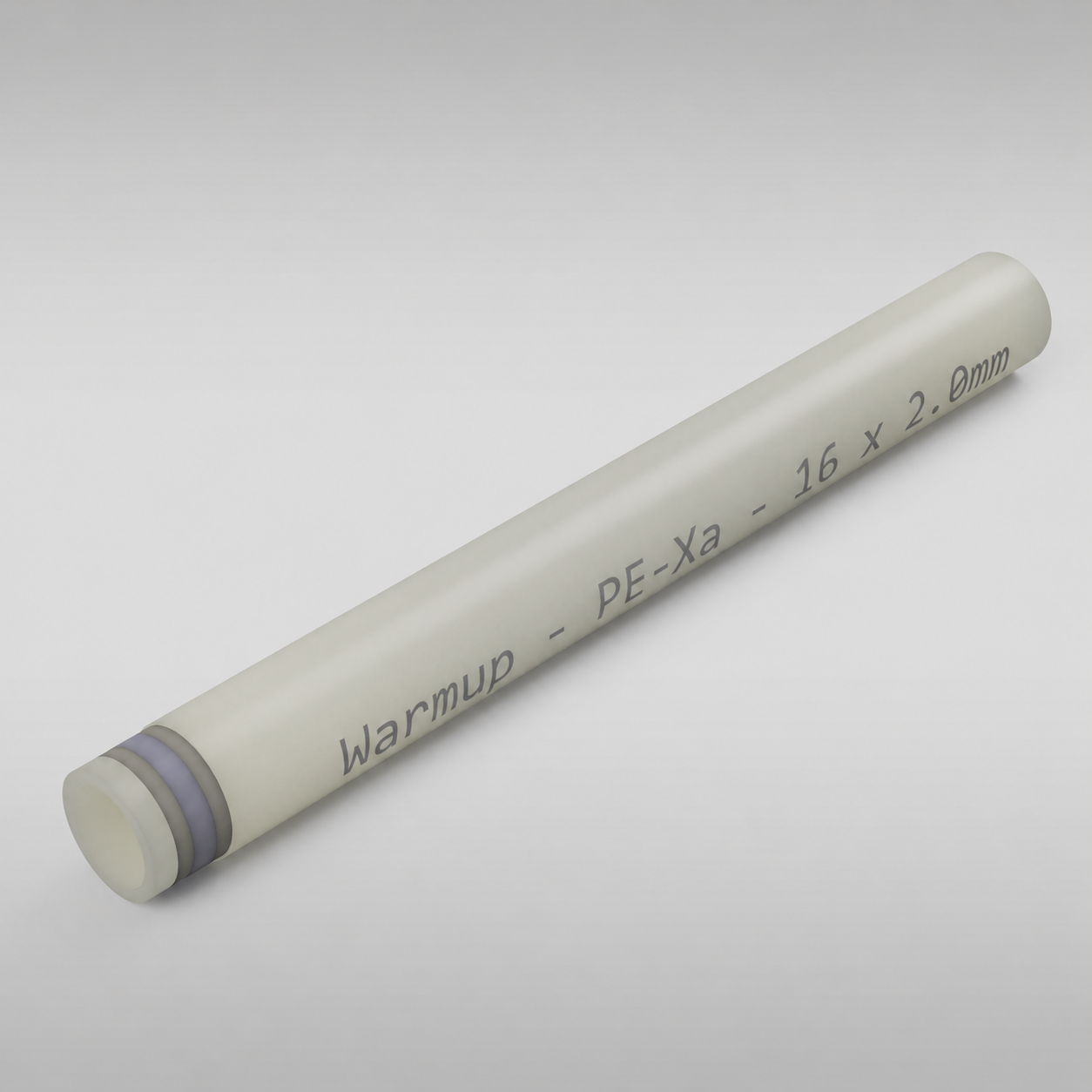

The Warmup PEX-A Pipe is formed as a single extrusion with an adhesive layer and EVOH oxygen barrier.
Key benefits
Oxygen barrier
Encasing the PE-Xa completely, the adhesive layer prevents oxygen entering the system via the pipework.
Easy to lay
Flexible and light, the pipe is easy to lay down.
Corrosion free
The coatings stop oxygen from entering via the pipework minimising the risk of corrosion to the system.
Recommended Pipe for Hydronic Systems
The oxygen barrier is required to prevent ingress of oxygen which will fuel corrosion within the system. The PEX-a pipe is able to withstand higher pressures, is more kink resistant and considerably more flexible than competing Pex-pipes. This means an easier installation for the installer.
The oxygen diffusion barrier encases PEX-a completely, preventing the entry of oxygen into the heating system via the pipe work. The tough outer layer is designed to withstand the rigours of surrounding workloads, ensuring that the oxygen barrier remains intact. This significantly reduces the risk of corrosion within the entire system.
PEX-a pipe is what we recommend at the heart of all our underfloor heating systems because it is strong, flexible, kink resistant and comes with our best warranties, guaranteed.
Warranty
Lifetime WarrantyThe Warmup PEX-A Pipe is formed as a single extrusion with an adhesive layer and EVOH oxygen barrier.
Technical Information
Product Documentation
Technical Specifications Sheet: PE-Xa PIPE
Pipe bend supports: Technical Specification Sheet
Pipe conduit: Technical Specification Sheet
Technical Specifications
| Pipe Range nominal dimensions | 16mm OD 2.0mm wall thickness |
| Colour | Natural |
| Coil sizes | 25 m, 50 – 120 m (in 10 m increments), 200m, 300m, 500m |
| Maximum Operating pressure | 8 bar* |

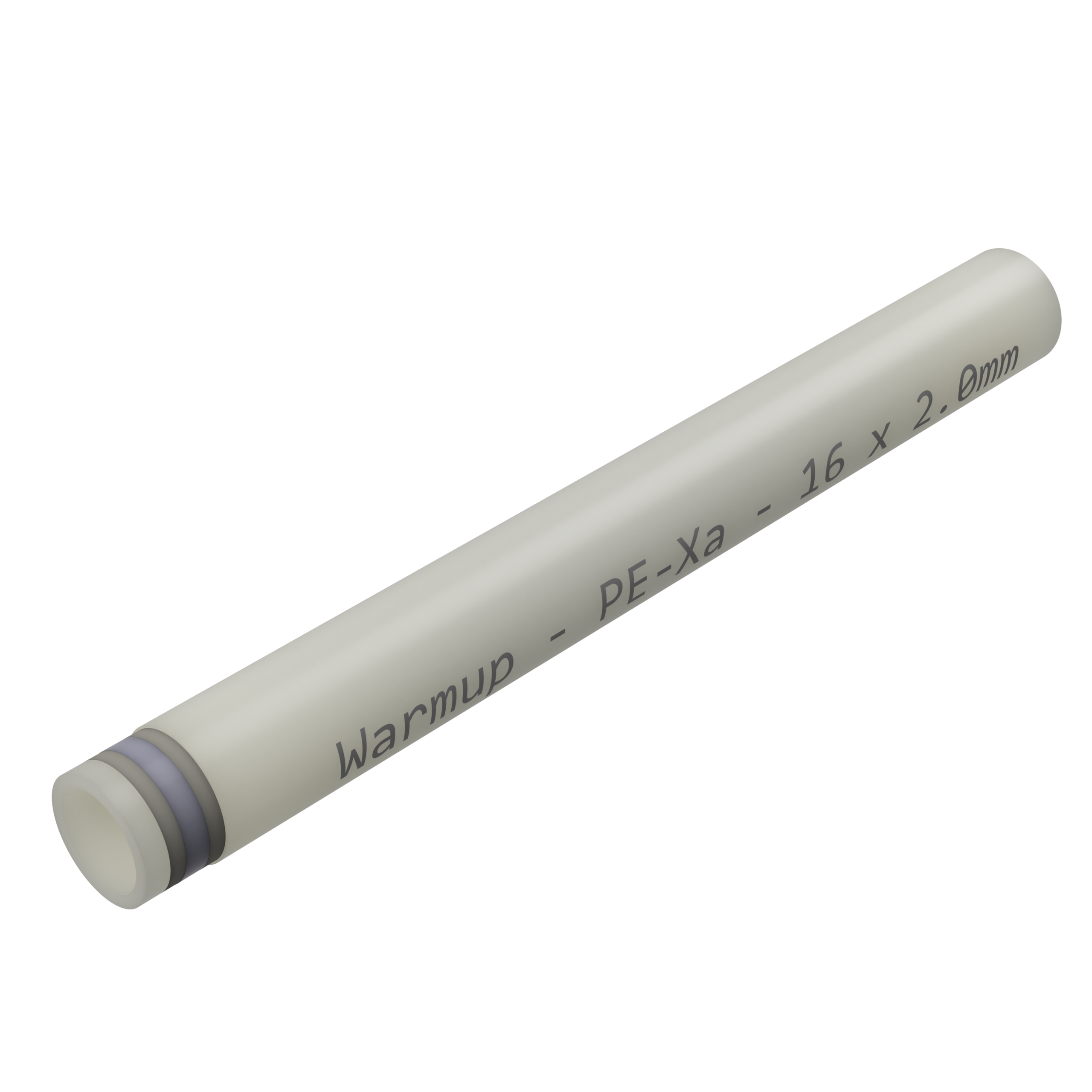

| Construction 5 layer: | Cross-linked Polyethylene inner pipe layer (PE-Xa) Adhesive layer bonding the inner pipe layer to the oxygen barrier Ethylene vinyl alcohol copolymer (EVOH) oxygen barrier layer Adhesive layer bonding the outer pipe layer to the oxygen barrier Polyethylene outer pipe layer (PE-RT) |
| Manufacturing | UNE-EN ISO 15875, DIN4726 |
* When installed as per Warmup hUFH installation manuals with an operating pressure of no more than 8 bar a Lifetime warranty is provided
Mechanical Properties
| Composition | PEX-A 70% cross linked |
| Pipe roughness | 0.007 mm/m |
| Bending radius | 112mm, unsupported |
| Volume | 0.13l/m |
| O2 Permeability | 0.08 G/M³.d |
Thermal Properties
| Thermal conductivity | 0.35 – 0.38 W / m·K |
| Working temperature range | -20ºC to 95ºC |
| Max. Operating Temperature | 110°C |
| Thermal expansion coefficient | 0.026 mm/m·K |
Installing this product? You will also need:
Manifold
Our Manifold is manufactured from stainless steel and provides water regulation for up to 12 underfloor heating circuits.
Control Center
All hydronic systems require a control centre that works with the thermostats and heat source, such as a boiler or heat pump.

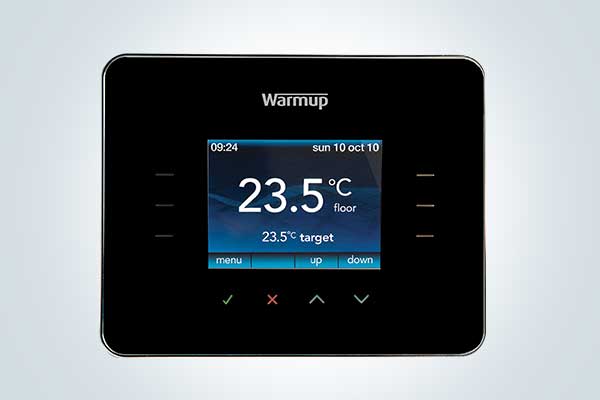

Thermostat
